HBP-1320

HBP-1320-E

3 years of warranty

The mobile professional for medical professionals.

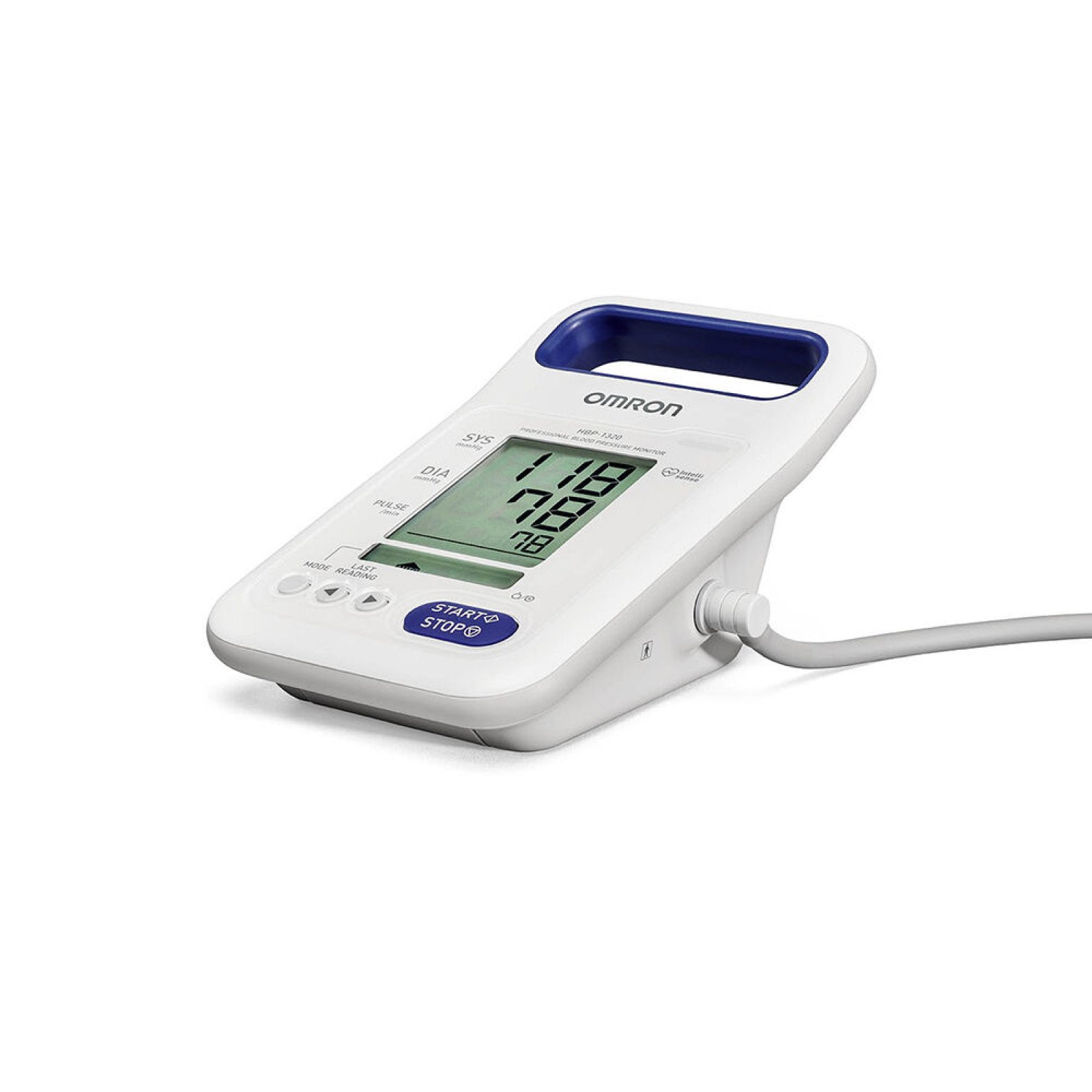

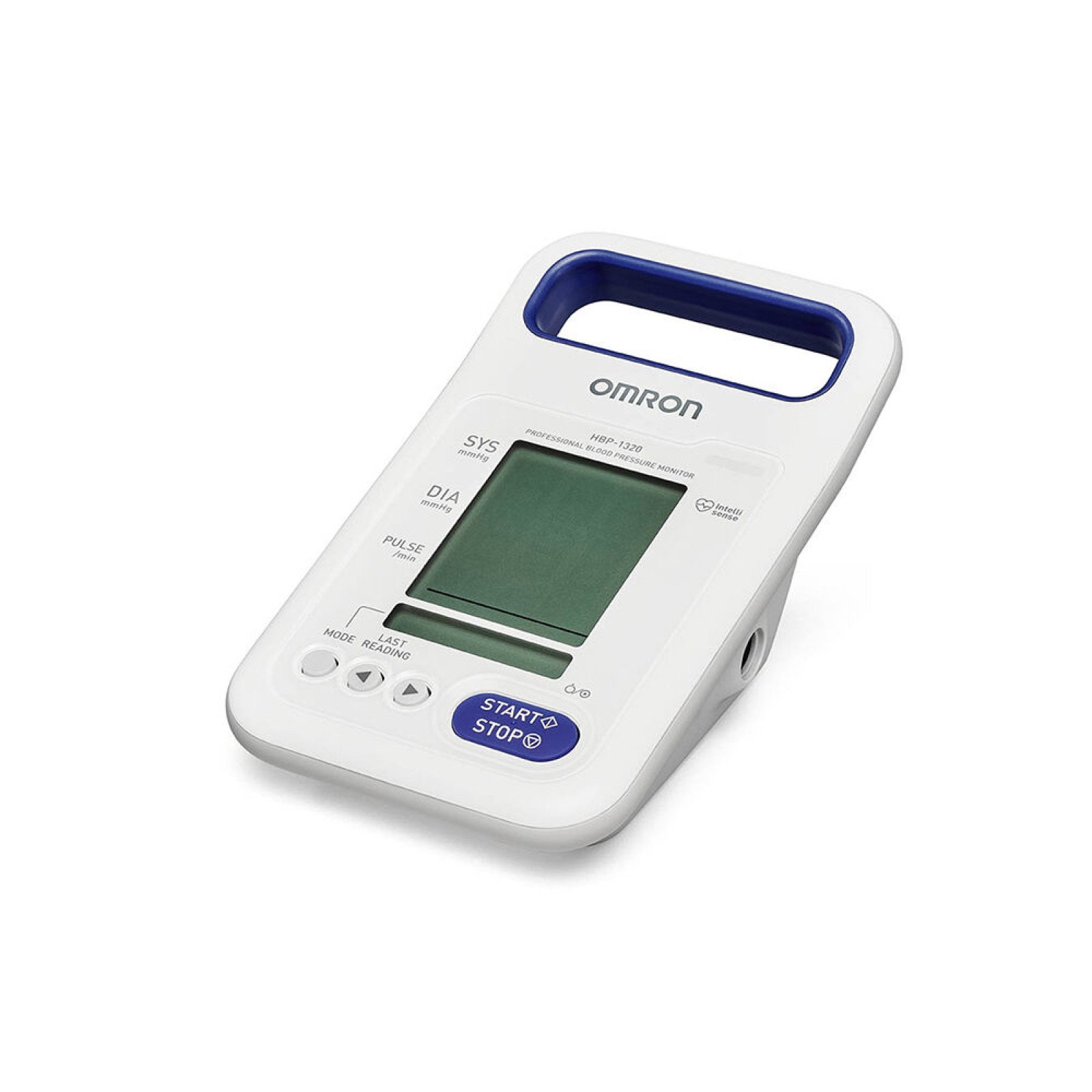

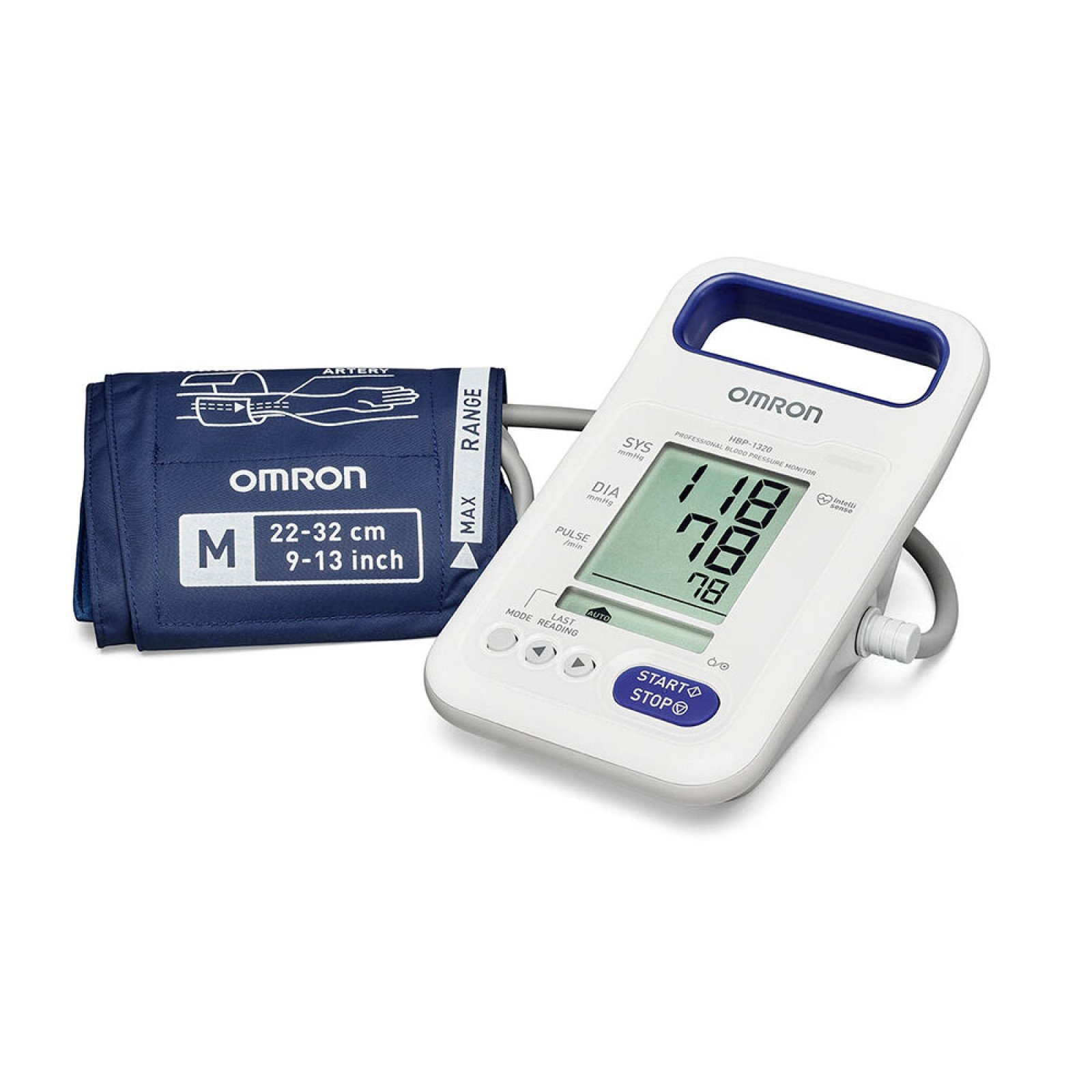

The HBP-1320 upper arm blood pressure monitor for healthcare professionals is easy to use, has a robust design, and an integrated handle that makes carrying easier, with fully automatic oscillometric measurement.

This device has been clinically proven to deliver fast and reliable results. Thanks to the 4-button design, the operation of the blood pressure monitor is intuitive; the display can be read very easily by the lighting and large numbers.

Find a store

Rechargeable battery
Backlit LCD
5 Cuff sizes

Specifications

Weight of Device (kg)
Weight of Device (kg): 0.52

product-properties.display_type.label product-properties.display_type.label product-properties.display_type.label
product-properties.display_type.label product-properties.display_type.label product-properties.display_type.label: 7 segment LCD

MDD Classification
MDD Classification: Class II a

AC Adapter Included
AC Adapter Included: Yes

Cuffs
Cuffs: SS (12-18cm), S (17-22cm), M (22-32cm), L (32-42cm), XL (42-50cm). With shorter (1 m) or longer (4.5m) tube attached.

Reference Standard
Reference Standard: EN1060-1:1995+A2:2009, EN1060-3:1997+A2:2009, EN80601-2-30:2010+A1:2015, EN ISO 81060-2:2013,

Measurement Technology
Measurement Technology: Oscillometric, Auscultatory

product-properties.measurement_method.label product-properties.measurement_method.label product-properties.measurement_method.label
product-properties.measurement_method.label product-properties.measurement_method.label product-properties.measurement_method.label: Dynamic Linear, Deflation method

Pressure Display Range
Pressure Display Range: 0 to 300 mmHg

NIBP Accuracy
NIBP Accuracy: Maximum mean error within ±5 mmHg, Maximum standard deviation within 8 mmHg

Pulse Rate Accuracy
Pulse Rate Accuracy: Within ±5 % of reading

Item Dimensions (mm): 123 x 201 x 99

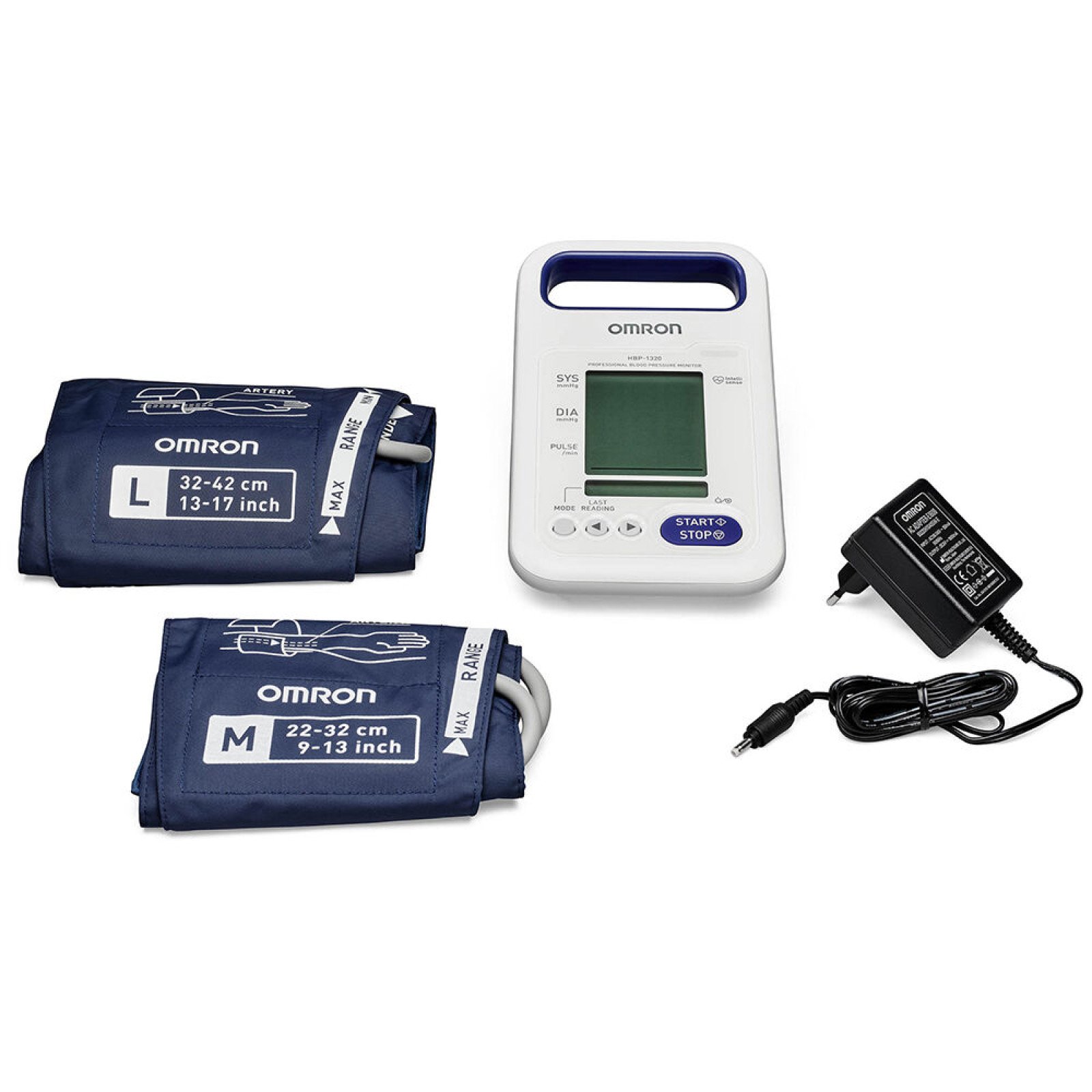

What's in the box?

Main unit,cuff size L (32-42 cm),cuff size M (22-32 cm),AC adapter,battery pack,instruction manual,guarantee card

Instruction manual

Download

Benefits

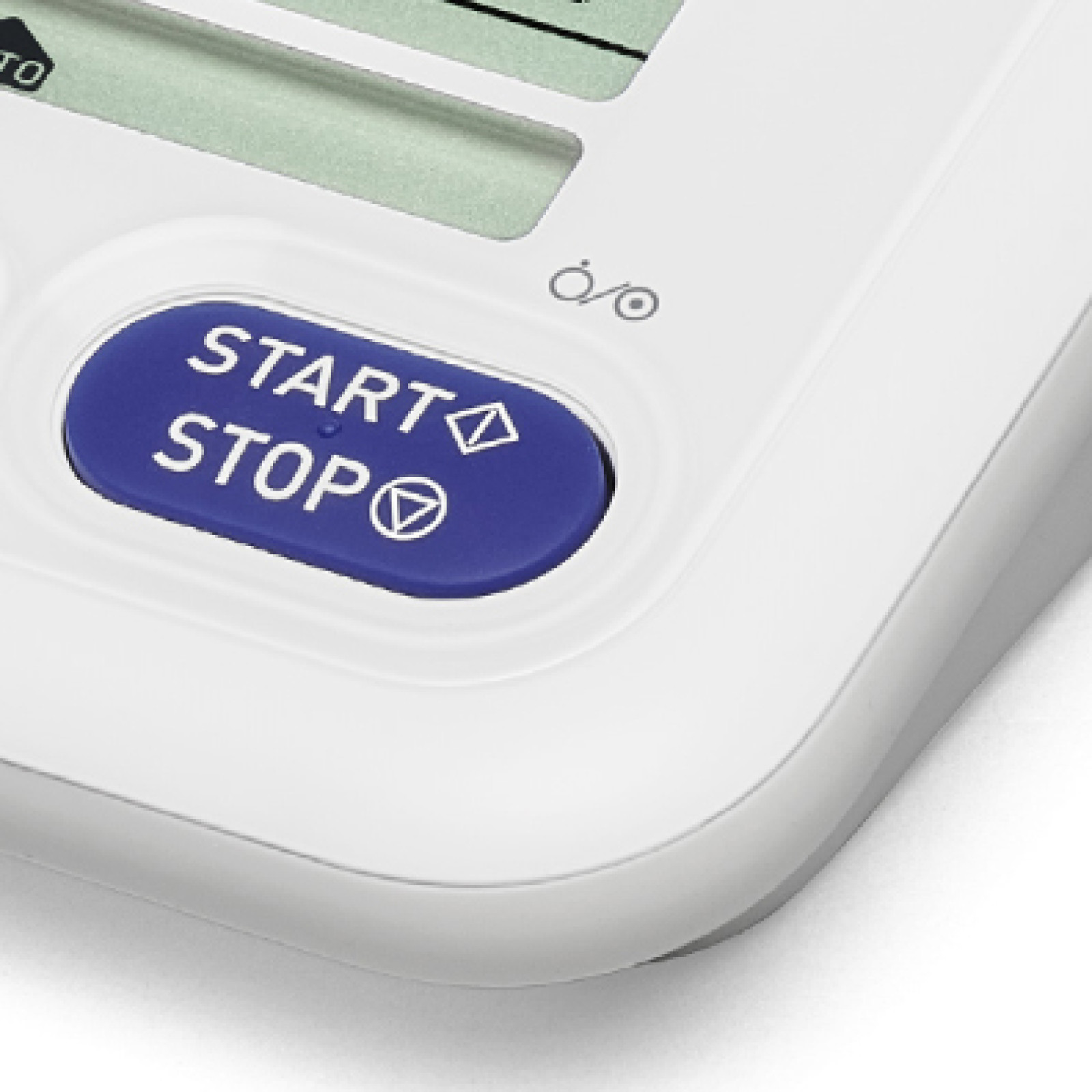

Robust design

Shock-proof bumper protects against falls.

Easy to clean

The monitor and the cuffs can be disinfected with alcohol based cleaning agents.

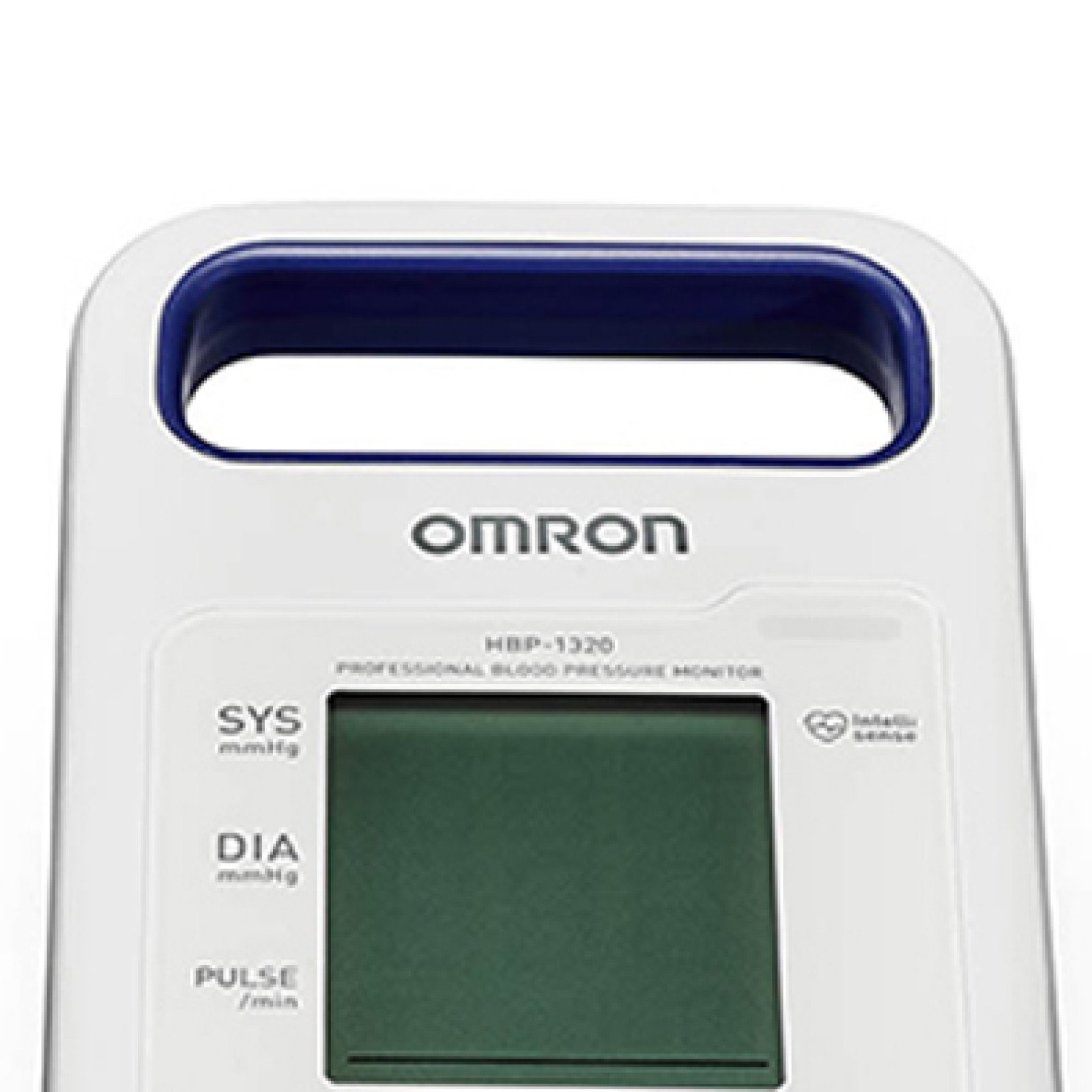

Portable

Designed for regular blood pressure measurements, the monitor is compact, lightweight, and has an integrated handle for easy carrying from patient to patient.

Dual mode

Depending on patient's condition such as atrial fibrillation, fully automatic oscillometric measurement or manual auscultation mode (using a stethoscope) can be chosen.

Other Resources

Clinical validation ANSI/AAMI/ISO guidelines (English only)

Clinical validation according to the European Society of Hypertension International Protocol revision 2010 (English only)

FAQs

Custom rechargeable battery makes it possible take up to 300 measurements with one charge.

This device is intended for use on adults and children of age 3 years and older using the corresponding cuff size.

The cuff sizes are available for use on different arm circumference:

XL (42-50cm)
L (32-42cm)
M (22-32cm)
S (17-22cm)
SS (12-18cm)
