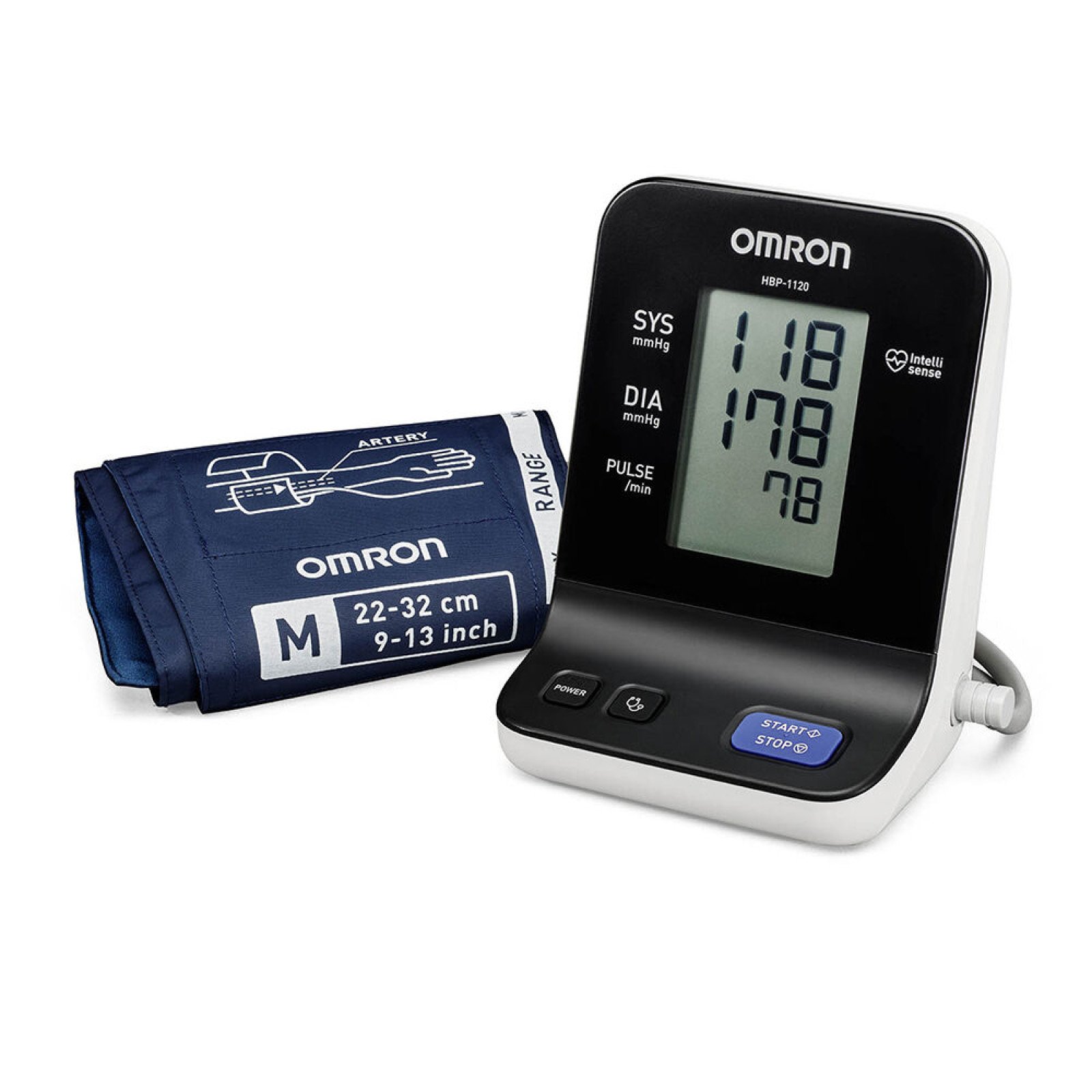

HBP-1120

HBP-1120-E

3 years of warranty

The HBP-1120 is specially designed for use in professional settings and is clinically proven to produce fast and reliable results, all day every day. The display is large and clear, making it easy to read. The OMRON HBP-1120 runs on batteries or via the supplied adapter. Measurements can be done through the oscillometric method and the auscultatory method. This meter uses IntelliSense technology from OMRON. Optionally, the inflation pressure can also be set manually. It detects irregular heartbeats and indicates this by a clear symbol on the screen.

Find a store

  • Easy to read display

  • 5 Cuff sizes

  • Dual mode

Specifications
Weight of Device (kg)
0.51
product-properties.display_type.label
7 segment LCD
MDD Classification
Class II a
AC Adapter Included
Yes
Cuffs
SS (12-18cm), S (17-22cm), M (22-32cm), L (32-42cm), XL (42-50cm).
Reference Standard
EN1060-1:1995+A2:2009, EN1060-3:1997+A2:2009, EN80601-2-30:2010+A1:2015, EN ISO 81060-2:2013
Measurement Technology
Oscillometric, Auscultatory
product-properties.measurement_method.label
Dynamic Linear, Deflation method
Pressure Display Range
0 to 300 mmHg
NIBP Measurement Range
SYS 60 to 250 mmHg, DIA 40 to 200 mmHg, PULSE 40 to 200 /min
NIBP Accuracy
Maximum mean error within ±5 mmHg, Maximum standard deviation within 8 mmHg
Pulse Rate Accuracy
Within ±5 % of reading
Item Dimensions (mm)
130 x 175 x 120

What's in the box?

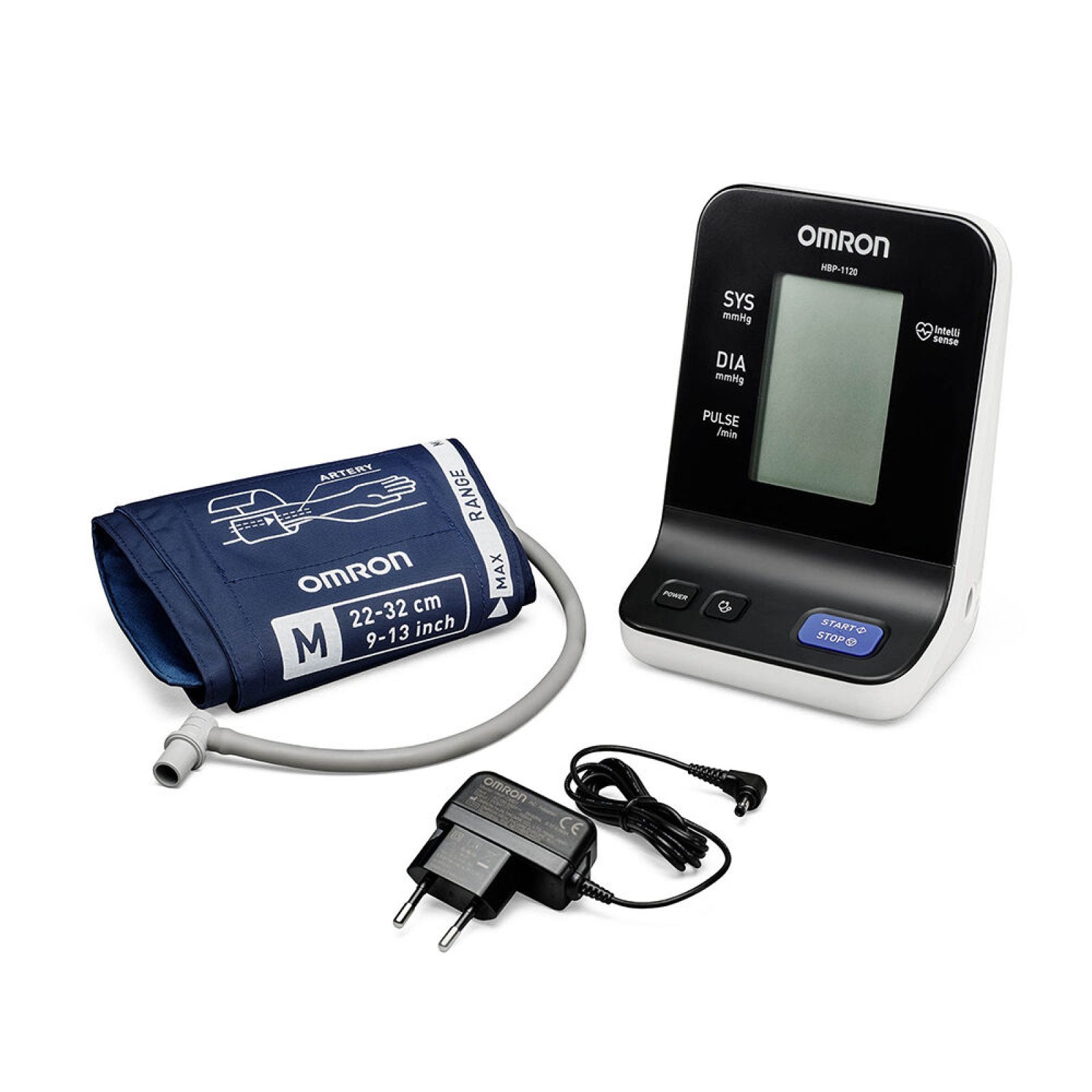

Main unit,arm cuff (M size),AC adapter,instruction manual,guarantee card

Instrucion manual

Benefits

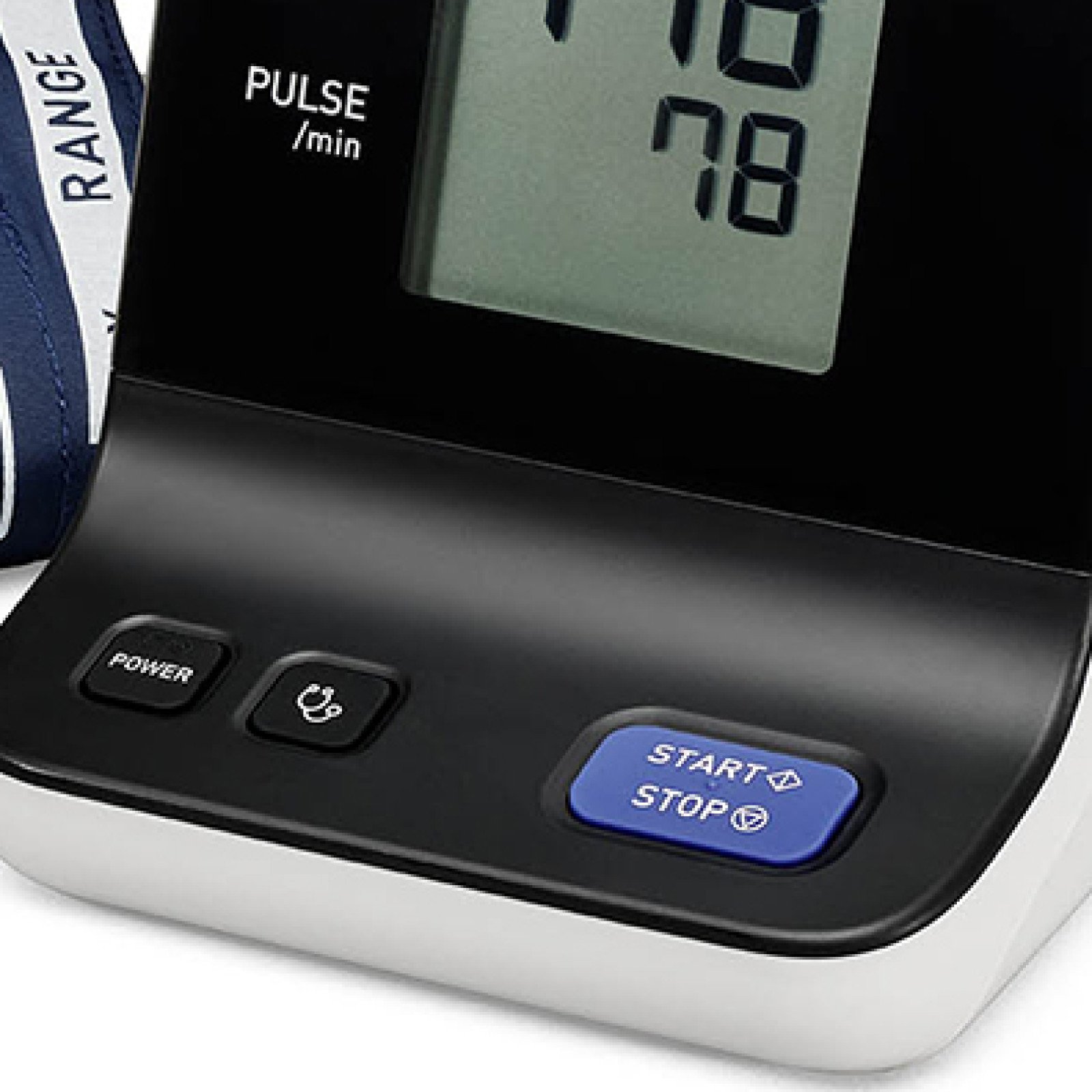

Easy operation

The user interface is kept simple for frequent use in a clinical setting. A reading can be taken by pushing the start/stop button. Auscultation mode can be activated by a dedicated mode button.

Dual mode

Depending on patient's condition such as atrial fibrillation, fully automatic oscillometric measurement or manual auscultation mode (using a stethoscope) can be chosen.

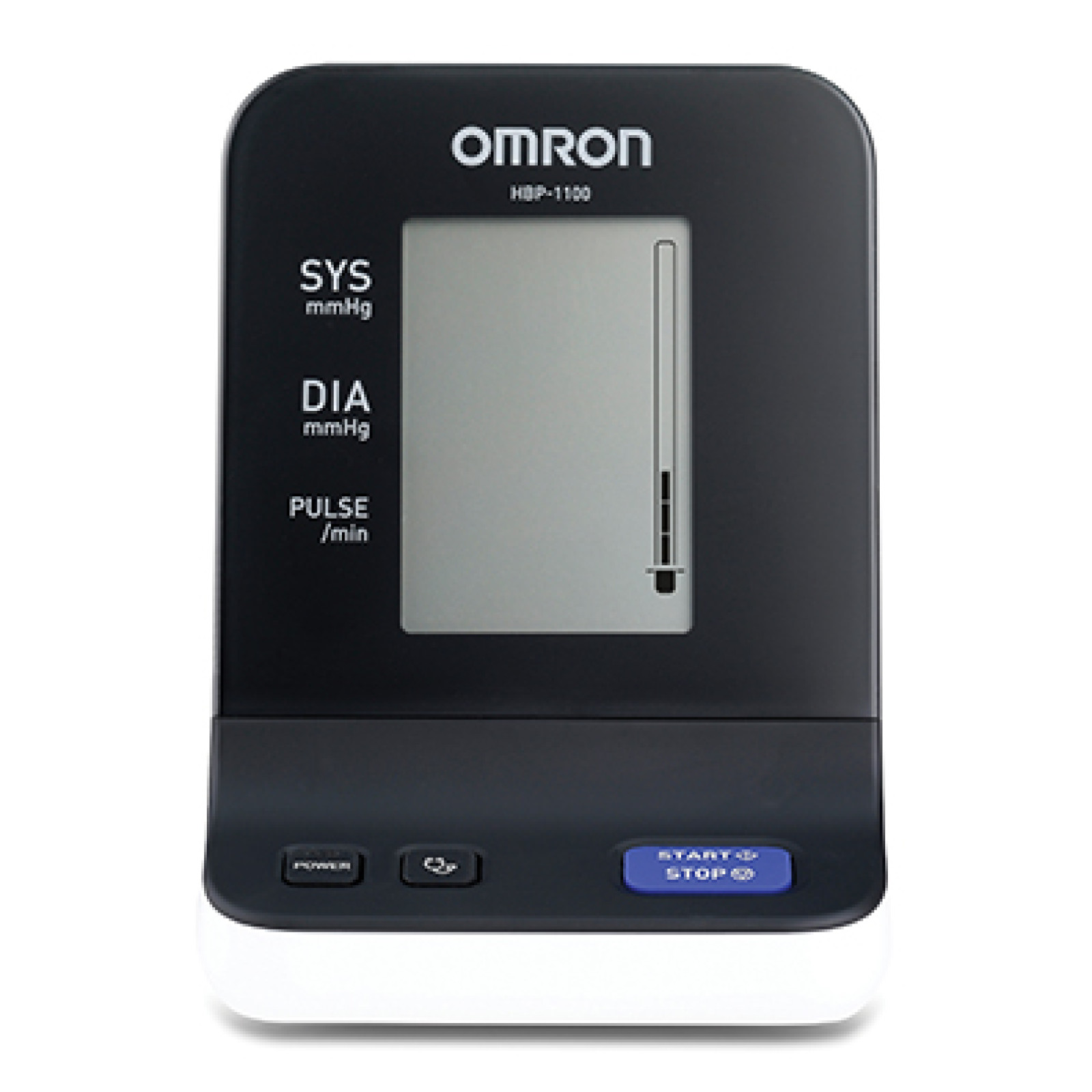

Zero indicator function

The Zero Indicator shows that the device is reset to zero pressure level and is ready for the next measurement, ensuring accurate results.

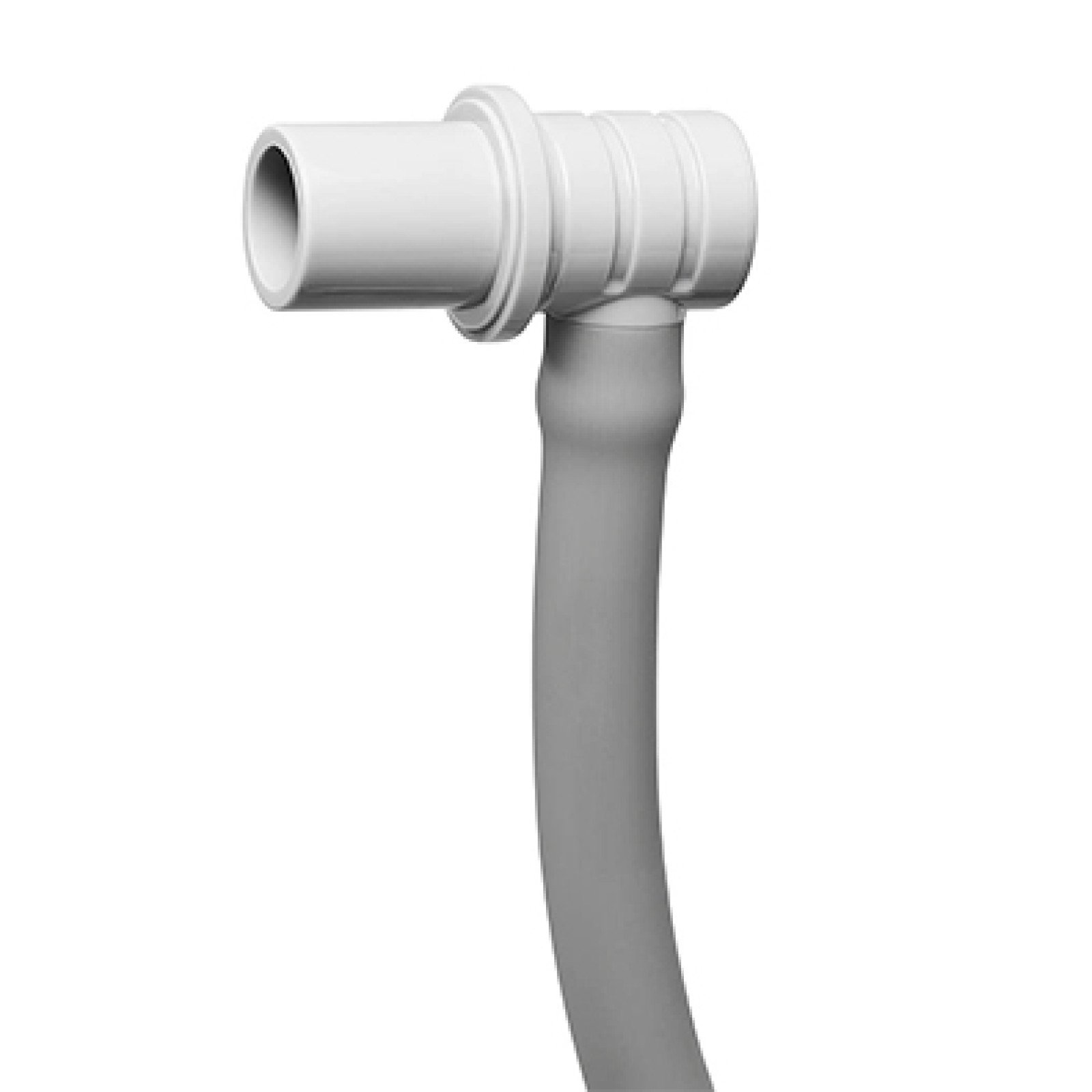

Highly durable

Equipped with a highly durable pump, robust sensor and uniquely shaped sturdy plastic cuff connector, the device is durable enough to survive daily intensive use in hospitals and medical facilities.

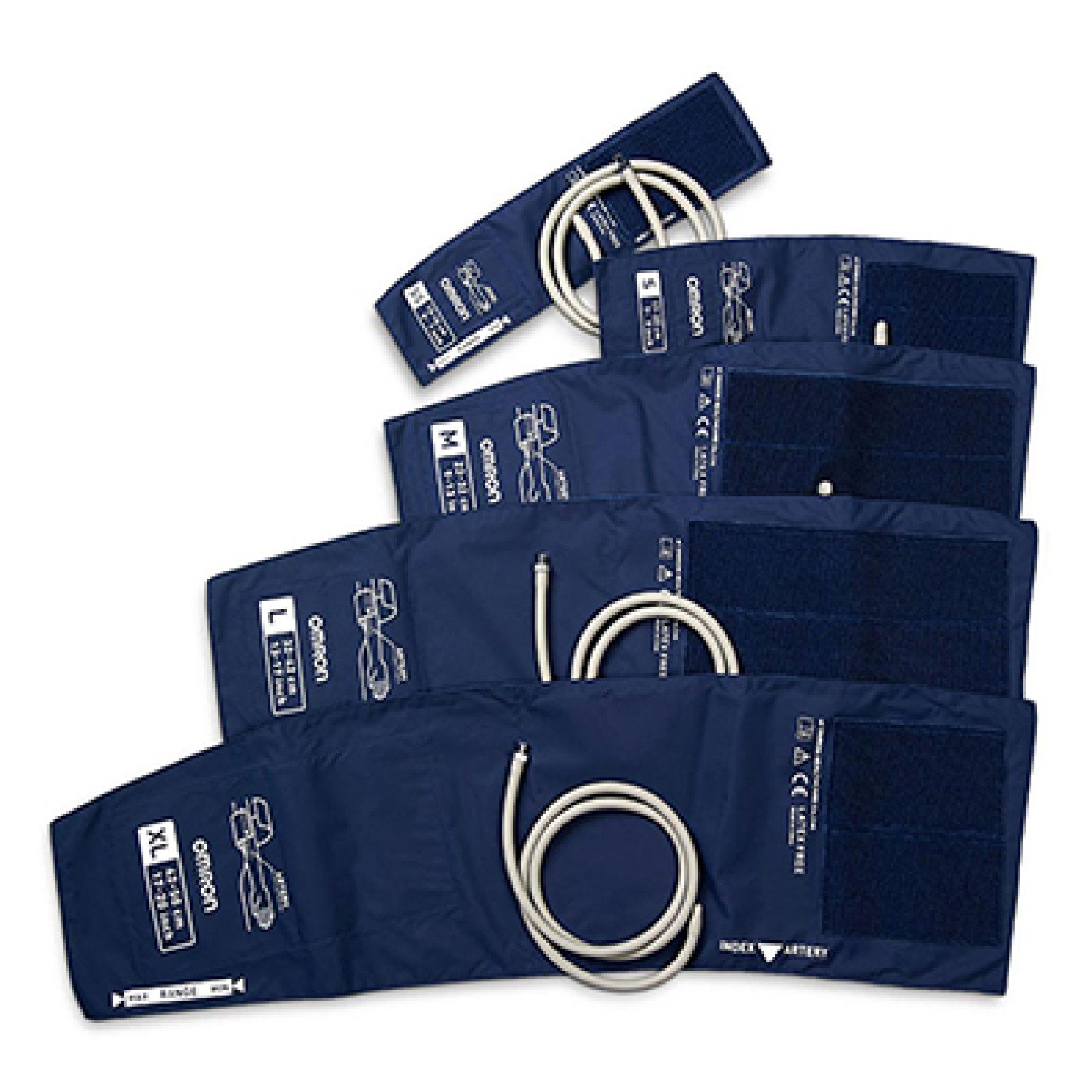

Five cuff sizes available

Accuracy of all blood pressure monitors and patient comfort is dependent on using the correct cuff size for the patient. That’s why the monitor is compatible with a series of specially designed wipe-clean cuffs ranging from SS (12-18cm) to XL (42-50cm) (available as accessory).

Other Resources

Clinical research & other supporting literature in the field of Cardiology

Guidelines validation of blood pressure monitors

FAQs
